Basalite® Wall
Geowall™ Pro
The Geowall™ Pro retaining wall system features an open core design and high strength pin connection system offering near vertical or battered setback positions.
Features & Benefits
- Split-Face Texture – Delivers the appearance of natural stone with rugged detail.
- Pinned Alignment System – Ensures consistent setback.
- Multiple Face Designs – Available in a tri-plane or straight face unit.
- Efficient Installation – The tail of the unit is designed to aid in construction.
- Accessory Units – Multiple capping and corner units available.
Available Colors
Grey
TAN

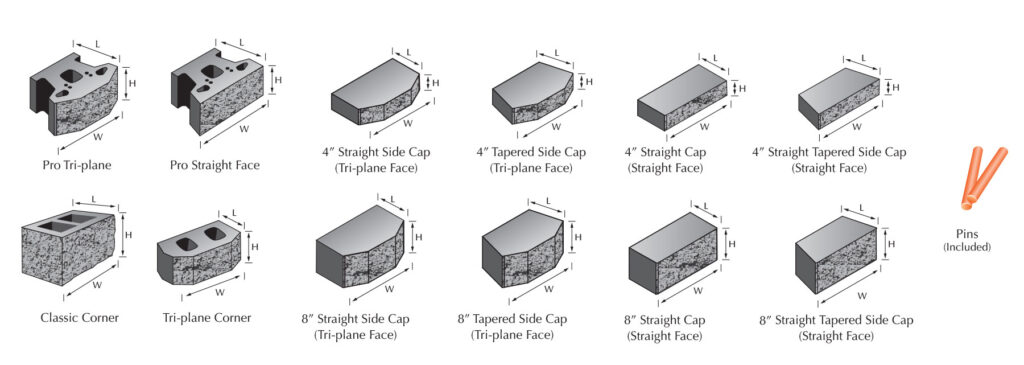

Specifications
| UNIT | width | depth | height | WEIGHT | SQ.FT. / PALLET | UNITS / PALLET |
|---|---|---|---|---|---|---|
| Pro Tri-plane | 18″ | 12″ | 8″ | 75 lbs | 1 | 45 |
| Pro Straight Face | 18″ | 12″ | 8″ | 80 lbs | 1 | 45 |
| Classic Corner | 18 | 9″ | 8″ | 60 lbs | 1 | 50 |
| Tri-plane Corner | 18″ | 9″ | 8″ | 60 lbs | 1 | 50 |
| 4″ Straight-Side – Tri-plane Face Cap | 18″ | 10.5″ | 4″ | 31 lbs | .5 | 80 |
| 4″ Tapered-Side – Tri-plane Face Cap | 18″/14″ | 10.5″ | 4″ | 31 lbs | .5 | 80 |
| 4″ Straight-Side – Straight Face Cap | 18″ | 10.5″ | 4″ | 31 lbs | .5 | 80 |
| 4″ Tapered-Side – Straight Face Cap | 18″/14″ | 10.5″ | 4″ | 31 lbs | .5 | 80 |
| 8″ Straight-Side – Tri-plane Face Cap | 18″ | 10.5″ | 8″ | 75 lbs | 1 | 50 |
| 8″ Tapered-Side – Tri-plane Face Cap | 18″/14″ | 10.5″ | 8″ | 75 lbs | 1 | 50 |
| 8″ Straight-Side – Straight Face Cap | 18″ | 10.5″ | 8″ | 75 lbs | 1 | 50 |
| 8″ Tapered-Side – Straight Face Cap | 18″/14″ | 10.5″ | 8″ | 75 lbs | 1 | 50 |
Visit your local Garden Supply Hardscapes store to see our complete selection of pavers. Our friendly and knowledgeable staff can help you choose the perfect paver or slab for your project and answer any questions you may have. We look forward to helping you create your dream outdoor space!
